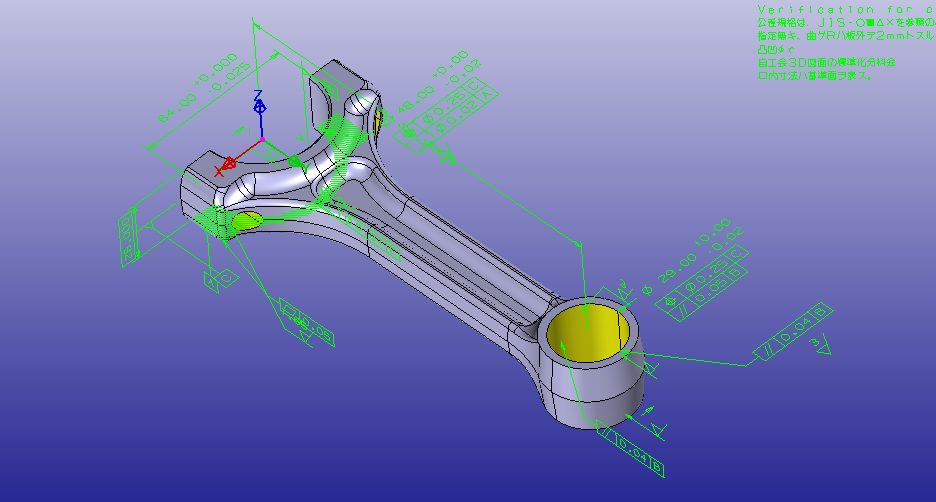

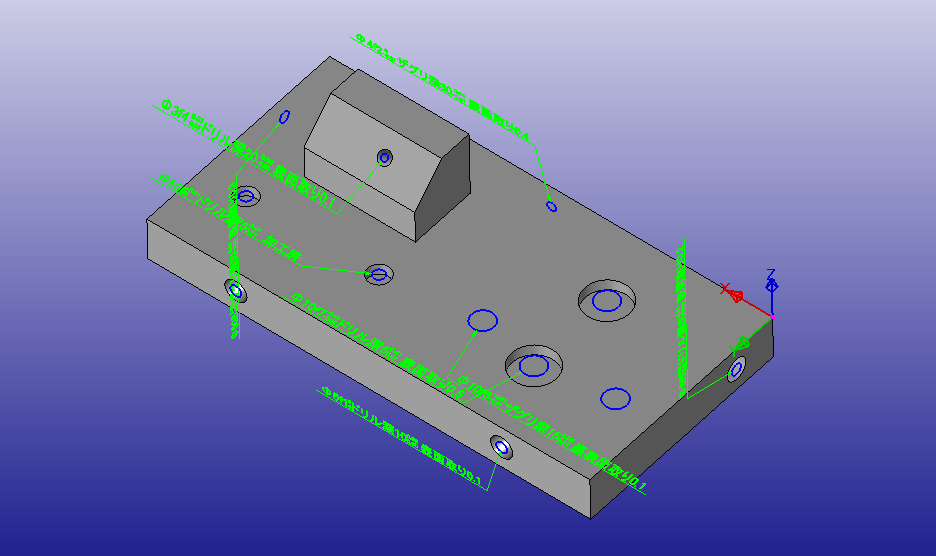

This function allows you to import 3DPMI information added in 3D CAD, such as welding symbols, hole attributes, and geometric tolerances, via CSV or XML for secondary use. By utilizing these functions, many companies have achieved “drawing-less” operations, eliminating the need for 2D drawings.

These features have already been incorporated into our product packages and have become standard features, but they were originally developed upon request.
